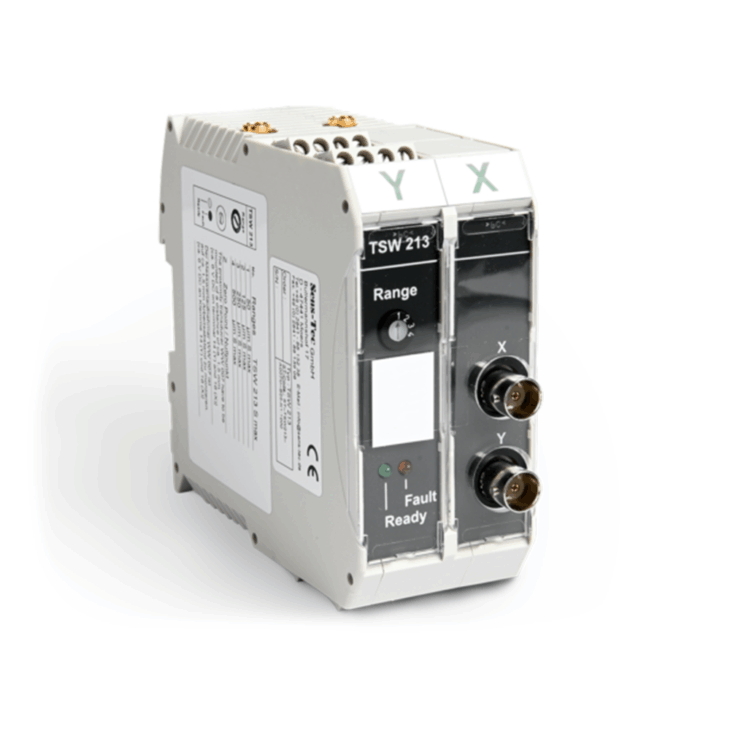

TSW 213 – Two-channel Vibration Transmitter

The TSW 213 transmitter is a two-channel vibration transmitter for non-contact shaft vibration monitoring. It calculates the maximum shaft vibration (Smax) according to DIN ISO 10817-1 by combining measurements from two eddy current proximity probes in the X and Y directions.

Accurate Two-channel Shaft Vibration Monitoring

The TSW 213 offers four selectable measuring ranges (50 µm, 125 µm, 250 µm, 500 µm Smax), switchable via DIP switch. It provides frequency ranges of 1–250 Hz, 1–1000 Hz, or 5–1500 Hz with a 20 dB/decade bandpass filter.

The transmitter delivers a 4–20 mA current output for Smax and dual voltage outputs (+4 mV/µm sensitivity with superimposed vibration). Outputs are short-circuit proof and accessible via terminals and BNC sockets. Built-in fault monitoring detects probe interruptions, short circuits, or out-of-range conditions, signaled by a 2 mA alarm and a red LED.

Key Benefits

• Two-channel Smax measurement according to DIN ISO 10817-1

• Four selectable measuring ranges up to 500 µm

• Dual voltage outputs and 4–20 mA current signal

• Integrated fault monitoring with LED and alarm signal

Application Areas

The TSW 213 is ideal for:

• Shaft vibration monitoring in turbines and generators

• Condition monitoring of compressors and pumps

• Industrial rotating machinery diagnostics

• Compliance with ISO vibration standards in process industries

Technical Specifications

• Measuring ranges: 50, 125, 250, 500 µm Smax (switch selectable)

• Frequency ranges: 1–250 Hz, 1–1000 Hz, 5–1500 Hz, 20 dB/decade

• Current output: 4–20 mA, max. load 500 Ω

• Voltage outputs: +4 mV/µm, RAW with vibration overlay, R ≥ 10 kΩ

• Sensor compatibility: WW 007 proximity probes, 5 m or 10 m cable lengths

• Zero point correction: ±1 mA via potentiometer

• Power supply: +24 V DC (18–30 V), max. 110 mA, galvanically isolated

• Housing: Polyamide, IP40, 114.5 × 99 × 45 mm, approx. 235 g

Monitor shaft vibration accurately with the TSW 213 transmitter
