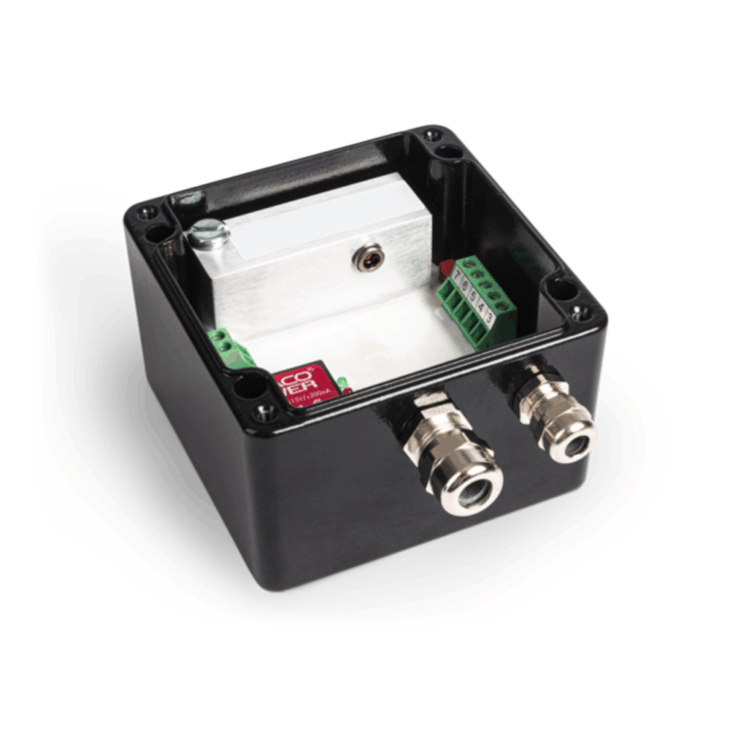

TSW 101 M1 – One-channel Vibration Transmitter

The TSW 101 M1 transmitter is a one-channel vibration transmitter designed for non-contact measurement of relative shaft vibration using eddy current proximity probes. With selectable measuring ranges and robust fault monitoring, it is ideal for reliable vibration measurement in rotating machinery.

Accurate and Reliable Shaft Vibration Monitoring

The TSW 101 M1 provides selectable dynamic measuring ranges of 125 μm, 250 μm, or 500 μm (peak-to-peak), adjustable via a DIP switch. Its wide frequency response of 1–1000 Hz with a bandpass filter ensures accurate vibration monitoring across different operating conditions.

The transmitter outputs both current (4–20 mA) and voltage signals. The voltage output provides a static gap signal with 4 mV/μm sensitivity and superimposed vibration, fully short-circuit protected and isolated. A zero-point correction feature allows fine adjustment of the 4 mA baseline, ensuring signal stability even during machine shutdown.

Fault detection is integrated, generating alarms when the probe is outside its range or if interruptions/short circuits occur in the sensor or cabling. Status is indicated via a red LED for fault and a green LED for readiness.

Key Benefits

• Non-contact relative shaft vibration monitoring with eddy current probes

• Selectable measuring ranges up to 500 μm peak-to-peak

• Dual outputs: 4–20 mA vibration signal and voltage static gap signal

• Built-in fault monitoring with LED status indicators

Application Areas

The TSW 101 M1 is widely used in industries where precise vibration monitoring is essential, including:

• Turbines and generators for shaft vibration protection

• Compressors and pumps for condition monitoring

• Industrial rotating equipment for preventive maintenance

• Machinery diagnostics in critical process industries

Technical Specifications

• Measuring ranges: 125, 250, or 500 μm (pp), DIP switch selectable

• Frequency range: 1–1000 Hz, bandpass filter 20 dB/decade

• Outputs: 4–20 mA (max load 500 Ω), static gap voltage 4 mV/μm

• Zero point correction: ±0.15 mA adjustment via potentiometer

• Sensitivity adjustment: Available via potentiometer S

• Power supply: +24 V DC (18–30 V), max. 60 mA, galvanically isolated

• Housing: Aluminum alloy, IP67 protection, 100 × 100 × 82 mm, approx. 800 g

Ensure precise and reliable shaft vibration monitoring with the TSW 101 M1
