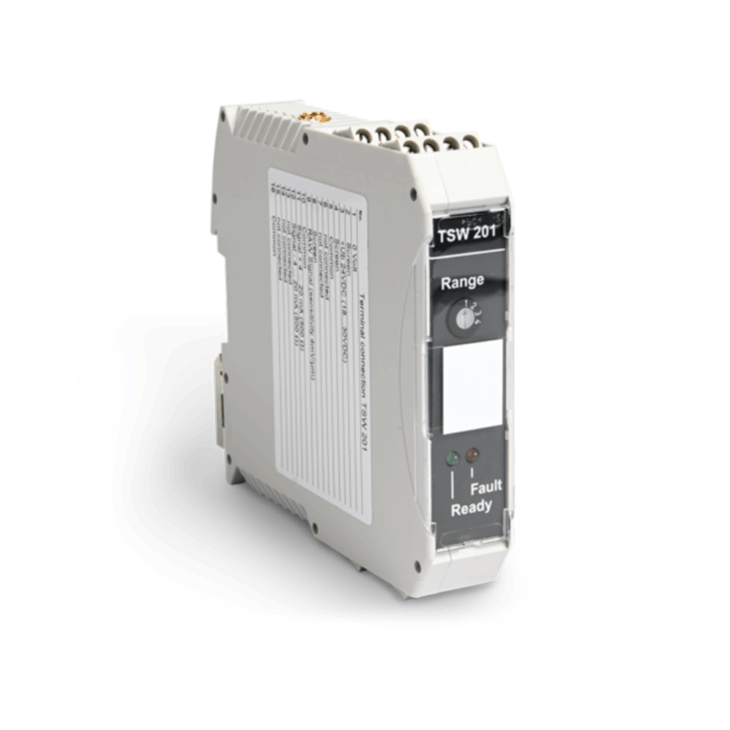

TSW 201 – One-channel Vibration Transmitter

The TSW 201 transmitter is a one-channel vibration transmitter for non-contact measurement of shaft vibration using eddy current proximity probes. It complies with DIN ISO 10817-1, forms the peak-to-peak value, and is partially equivalent to API 610.

Precise and Flexible Shaft Vibration Monitoring

The TSW 201 provides selectable dynamic measuring ranges of 50 µm, 125 µm, 250 µm, and 500 µm (peak-to-peak) via a front panel switch. A wide range of factory-set filter frequencies between 1 Hz and 6 kHz ensures high measurement flexibility. This allows the device to be adapted to a wide variety of rotating machinery applications.

The transmitter delivers both a 4–20 mA current output and a static gap voltage signal with 4 mV/µm sensitivity and superimposed vibration. It also includes offset and sensitivity adjustment on the front panel, enabling precise tuning for plant-specific conditions.

Key Benefits

• Compliance with DIN ISO 10817-1 and partial API 610 equivalence

• Wide selectable measuring ranges up to 500 µm peak-to-peak

• Dual outputs: 4–20 mA vibration signal and 2–10 V static displacement signal

• Front panel adjustment for offset and sensitivity

Application Areas

The TSW 201 is used in critical machinery applications where precise shaft vibration monitoring is required:

• Turbines and generators for shaft vibration protection

• Compressors and pumps for condition monitoring

• Power plant machinery requiring compliance with ISO/API standards

• Industrial rotating equipment diagnostics

Technical Specifications

• Measuring ranges: 50, 125, 250, or 500 µm peak-to-peak (switch selectable)

• Frequency ranges: factory-set, 1–250 Hz to 1–6000 Hz

• Current output: 4–20 mA, max. load 500 Ω

• Voltage output: static gap 4 mV/µm, 0.5–2.5 mm = 2–10 V DC

• Offset adjustment: ±1 mA front panel adjustment

• Sensitivity adjustment: ±10% front panel adjustment

• Accuracy: sensitivity ±5%, linearity deviation ±2% FSR

• Power supply: +24 V DC (18–30 V), max. 100 mA, galvanically isolated

• Housing: Polyamide, IP40, 114.5 × 99 × 22.5 mm, approx. 200 g

Monitor shaft vibration with precision using the TSW 201 transmitter
