SpeedSys® ODS Cabinet
The Istec SpeedSys® Cabinet is a modular, SIL3-certified system designed for easy installation and maximum safety. This compact cabinet integrates SpeedSys 300 modules into a single solution, with optional expansion for extra relays and monitoring. With a clear display, intuitive controls, and smart wiring, the SpeedSys ODS Cabinet enables rapid, reliable deployment in demanding industrial environments.
Advanced detection technology
SpeedSys offers precise overspeed, underspeed, and acceleration detection for both critical and semi-critical rotating machinery. Designed for flexibility, the system is scalable and suitable for all common industry standards, including API 670 and API 612.
Trusted by global OEMs
SpeedSys is trusted by leading OEMs and system integrators worldwide for its uncompromising safety, fast response time, and ease of integration. Its compact and modular design enables seamless implementation in both new builds and retrofit projects – from microturbines to high-end turbomachinery.
Safety system by design
Certified upto SIL 3 with voting logics, SpeedSys delivers rapid hardware response (<8 ms), 2x 2oo3 safety relays, alarm relays, Modbus, binary I/O, and advanced diagnostics. Designed for durability, with a typical 10-year proof test interval.
Design

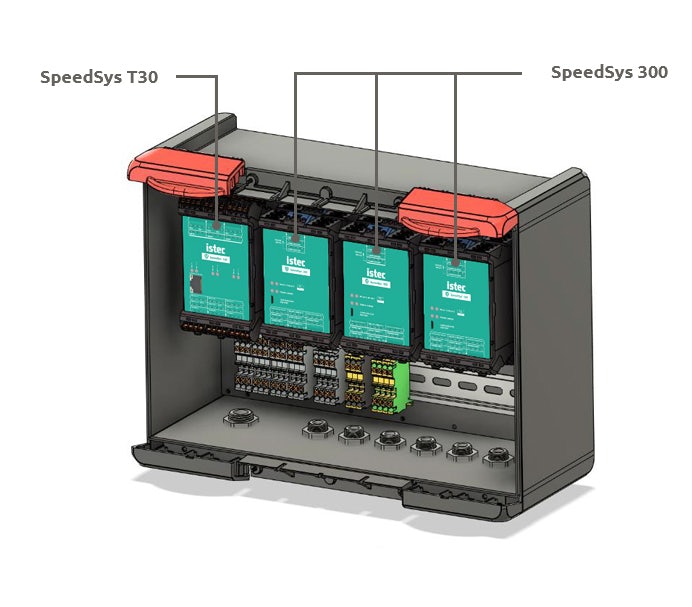

The Istec SpeedSys® ODS Cabinet is a compact, SIL3-certified system for overspeed and acceleration protection. Designed for straightforward installation, it combines SpeedSys 300 modules in a robust cabinet with an integrated display for real-time status and values. The setup can be expanded with a SpeedSys T30 monitor for additional relays, monitoring functions and communication.
The cabinet supports direct wiring to all modules, with additional terminals for power, 2oo3 voting, and grounding to simplify setup. Three front-panel buttons provide easy access to reset and diagnostic test functions. The SpeedSys ODS Cabinet enables fast, reliable integration into safety-critical industrial environments.
Read more: SpeedSys 300 (SIL3), Istec SpeedSys T30
Features
Any voting structure
The SpeedSys ODS Cabinet supports flexible safety voting configurations, including 2oo3 structures, making it suitable for both new installations and retrofit projects. Its modular design allows for scalable redundancy and reliable SIL3 protection, tailored to the safety requirements of critical industrial applications.
Mouting, wiring and testing
Each SpeedSys ODS Cabinet is delivered fully assembled and ready for integration. Our specialists handle the entire process: from mounting and wiring according to the selected safety voting structure (such as 2oo3), to thorough testing and validation before delivery. This ensures a plug-and-play experience with maximum reliability and full compliance with safety standards.
Technical Highlights
- Advanced self-diagnostics and monitoring
- Support for various sensor types
- Redundant 24VDC power inputs
- Multiple safety and non-safety relays
- Modbus communication for easy integration
- Compact, robust enclosure
