TSG 202 – One-channel Vibration Transmitter

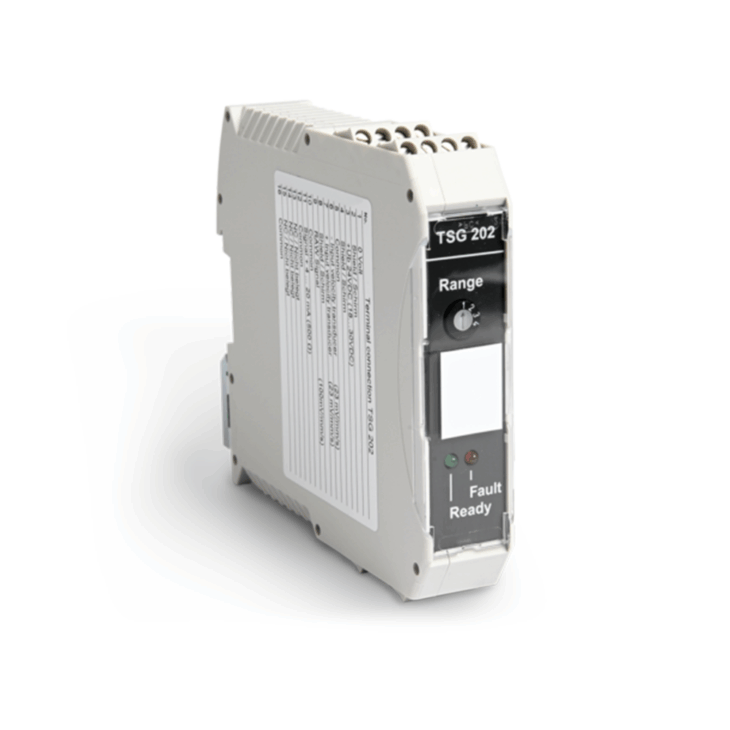

The TSG 202 transmitter is a one-channel vibration transmitter designed for absolute vibration velocity measurement using electrodynamic velocity transducers. It measures the true RMS value of vibration velocity in accordance with ISO 10816-1, making it ideal for condition monitoring of rotating machinery.

Absolute Vibration Monitoring with Electrodynamic Transducers

The TSG 202 provides selectable measuring ranges of 10, 20, and 30 mm/s RMS, with an optional custom range defined by the customer. It supports a standard frequency range of 10–1000 Hz and can optionally be extended down to 3 Hz with a frequency linearization option.

The transmitter provides both current (4–20 mA) and unfiltered RAW voltage outputs, ensuring compatibility with a wide range of monitoring systems. Built-in fault monitoring continuously detects sensor or cable interruptions, indicated by a red LED and a 2 mA alarm signal. An optional relay output is available for advanced system integration.

Key Benefits

• RMS vibration velocity measurement in accordance with ISO 10816-1

• Multiple measuring ranges selectable via rotary switch

• Dual outputs: 4–20 mA current and RAW voltage signal

• Built-in sensor and cable fault monitoring with alarm signaling

Application Areas

The TSG 202 is widely applied in condition monitoring and protection of rotating machinery, such as:

• Turbines and generators

• Compressors and pumps

• Fans and blowers

• Industrial rotating equipment

Technical Specifications

• Measuring ranges: 10, 20, 30 mm/s RMS, optional custom range

• Frequency range: 10–1000 Hz, optional 3–1000 Hz

• Current output: 4–20 mA, max. load 500 Ω

• Voltage output: RAW signal 100 mV/mm/s RMS

• Sensor input: electrodynamic velocity probes, 23.7 mV/mm/s

• Zero point correction: ±1 mA adjustable

• Power supply: +24 V DC (18–30 V), max. 80 mA, galvanically isolated

• Housing: Polyamide, IP30, 114.5 × 99 × 22.5 mm, approx. 200 g

Ensure reliable vibration velocity monitoring with the TSG 202 transmitter
